How Much Does Radiant Floor Heating Cost in 2024?

Radiant floor heating costs between $6 and $20 per square foot. Most homeowners pay an average of $3,845, or between $1,740 and $5,990.

Can you imagine stepping out of the shower on a chilly morning and feeling the gentle heat rising through your feet? With radiant floor heating, you could have this luxurious experience for an average of $3,845, or between $1,740 and $5,990.

Radiant floor heating is the ultimate comfort home upgrade, and it’s also an energy-efficient way to heat your home. Not only that, but it also doesn’t blow any drafts or dust, and it works quietly.

This article will tell you everything you need to know about the costs of having a cozy and warm home without the hassle of bulky radiators or loud furnace fans.

In this cost guide:

Average Heated Floor Costs in 2024

National Average Cost$3,845
Typical Price Range$1,740 – $5,990
Extreme Low-End Cost (50 square feet)$275
Extreme High-End Cost (2,000 square feet)$40,000

Most homeowners pay between $1,740 and $5,990 to install heated floors in a 300-square-foot area. However, these costs can vary significantly depending on the size of the room, the type of radiant heating system, and a few other factors.

For example, if you plan on having a hydronic floor heating system installed in a bathroom of 50 square feet, you can end up paying as low as $275. However, if you plan on having it installed in an entire home, around 2,000 square feet, you could pay as high as $40,000.

Heated Floors Cost Estimator by Square Foot

When budgeting for in-floor heating, the dimensions of the space play a crucial role in determining expenses. As the square footage increases, so does the number of materials and labor needed, ultimately resulting in a higher overall cost.

The costs for radiant floor heating will depend on the system type. However, prices range between $6 and $20 per square foot. You can use the table below to estimate your project’s costs:

Project Size Average Costs (Material & Labor)
50 sq. ft.$300 – $1,000
100 sq. ft.$600 – $2,000
200 sq. ft.$1,200 – $4,000
300 sq. ft.$1,800 – $6,000
500 sq. ft.$3,000 – $10,000
1,000 sq. ft.$6,000 – $20,000
2,000 sq. ft.$12,000 – $40,000

Other Factors That Affect Cost

When it comes to installing a heated floor system, the size of the area is just one of several factors that can impact the project’s overall cost. Therefore, other considerations must be taken into account when estimating expenses:

Type

There are three main types of radiant floor heating: hydronic, electric, and solar. Each type has its own unique set of benefits and drawbacks. As such, the best system for a particular space will depend on factors such as the climate and energy costs of the area.

Type Average Cost Per Sq. Ft. (Materials and Labor)
Hydronic$6 – $20
Electric$8 – $15
Solar$11 – $17

Hydronic

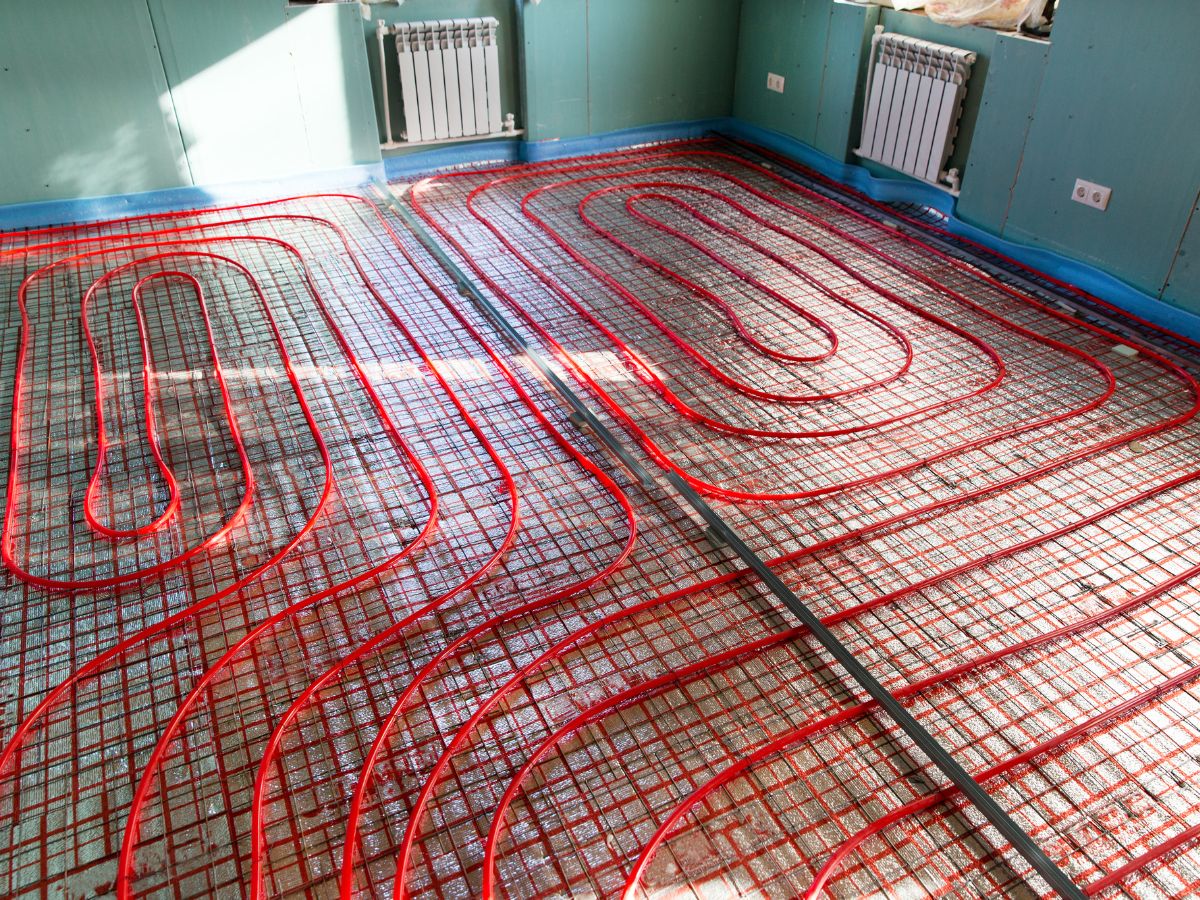

A hydronic radiant floor heating system uses hot water, heated by a boiler or water heater, that circulates through pipes embedded underneath your flooring. This allows heat to radiate upward and warm the room very efficiently. Installing this system costs $6 to $20 per square foot.

ProsCons
Reduced electricity consumption✗ Takes longer to heat a room
✓ Provides consistent heat✗ Needs regular maintenance
✓ Good for larger areas✗ Possibility of water freezing

There are two methods of hydronic heating:

  • Propane: This method uses a propane-fired boiler to heat the water. Installing propane hydronic systems costs between $6 and $18 per square foot.
  • Geothermal: This hydronic heating method uses the earth’s constant temperature to transfer thermal energy through heat pumps through the pipes. Installing a geothermal system costs between $5 and $16 per square foot.

Electric

Electric radiant floor heating systems are a type of radiant heating system that uses electric mats or cables installed under the floor to generate heat. When electricity flows through the conductive cables or mats, it generates heat which warms the floor and heats the room. Electric heated floors cost $8 to $15 per square foot installed.

ProsCons
✓ Easier to install✗ Higher operating costs
✓ Less maintenance required✗ Not as efficient as hydronic systems
✓ Faster heat-up time✗ Limited to smaller areas

Solar

A solar radiant system uses the heat from the sun to warm air or water, which then circulates through pipes installed on the floor. Installing a solar-powered heating system costs $11 to $17 per square foot.

ProsCons
✓ Ideal for sunny climates✗ High initial costs
✓ Reduced energy costs✗ Depends on the weather and time of the day
✓ Environmentally friendly✗ It is inconsistent

Type of Flooring

Radiant heating systems can be installed under various flooring types, including tile, concrete, laminate, and even carpet. However, linoleum and rubber floors are not ideal, as the heat can damage them. In addition, each type of flooring has specific requirements to protect it from damage and ensure proper heat transfer.

Here are the different flooring materials you can have a radiant heat system with and their costs, including the materials and labor to install the flooring:

Heated Vinyl Floor

Installing a radiant heat system under vinyl flooring is possible. However, there are more efficient options than this, as it is not a highly conductive material like tile. Also, to prevent the color from fading or the planks from shrinking, it’s crucial to use a thermostat to keep the temperatures under 80 F.

Cost: $6 – $21 per square foot

Heated Bamboo Flooring

Bamboo flooring has natural properties that help it retain heat, which makes it a good option for radiant heat. However, it would be best if you used a thermostat to keep the temperature between 75 and 80 degrees to prevent damage. You should also install the subfloor between the heating system and the bamboo flooring so it’s not placed directly over it.

Cost: $10 – $25 per square foot

Heated Carpet

Radiant heat can be installed under carpet, but the system’s efficiency may be decreased due to the insulating properties of the carpet and the insulating pad beneath it. This means that it may take longer to heat the room or require more energy to maintain a comfortable temperature.

Cost: $10 – $33 per square foot

Heated Concrete Flooring

Installing radiant heat in concrete floors is one of the most popular options. The tubing for the radiant heat system can be laid directly in the concrete during the pouring process, and the concrete acts as a heat sink, absorbing and storing heat. This allows it to save more energy (while you save money).

Cost: $12 – $23 per square foot

Heated Cork

Cork is a natural material susceptible to drying out faster when paired with radiant heat. However, if you still want to have heated cork flooring in your home, it’s recommended to use a humidifier in the room.

Cost: $11 – $22 per square foot

Heated Hardwood Floor

Hardwood floors with high dimensional stability, such as cypress, mahogany, and teak, work best with radiant heat systems. However, wood is a porous material, so you have to be extra cautious when using hydronic systems with hardwood flooring because leakage can lead to mold or rot.

Cost: $15 – $25 per square foot.

Heated Laminate Flooring

Installing radiant heating with laminate flooring is a popular and cost-effective option. Because laminate is a synthetic material, it does not absorb moisture like natural wood or cork, so the risk of the flooring warping or cracking due to changes in humidity is minimal. However, temperatures should be kept at a maximum of 80 F.

Cost: $15 – $22 per square foot

Heated Stone Flooring

Natural stones, such as slate, are ideal materials for radiant heating systems. They are durable, good heat conductors, and won’t be damaged if there’s a leakage in the system. In addition, natural stone does not expand or contract with temperature changes.

Cost: $16 – $62 per square foot

Heated Marble Floor

Marble is a natural stone with the highest thermal conductivity. This means that marble flooring efficiently passes heat, which saves the most money. However, marble is a luxurious material, so installing it with a radiant heat system can be pricey.

Cost: $18 – $75 per square foot

Heated Tile

Installing radiant heat with tile floors, such as ceramic or porcelain, is a popular option, particularly in places such as kitchens or bathrooms where tile can feel cold to the touch. Tile is also a good conductor of heat, which means the floors will heat up quickly and use less energy.

Cost: $19 – $40 per square foot

Installation Costs

Materials for installing radiant heat systems are relatively inexpensive, so the costs for installation are primarily for labor. Many factors can affect the costs for radiant heat installation, including the type of installation, type of flooring material, and type of radiant heat system.

Radiant heat systems can be installed using either a dry or wet method:

  • Dry installation: this method involves placing the tubing and wires between layers of plywood that insulate the floor.
  • Wet installation: this installation uses poured concrete to set the tubing in place.

On average, it takes about 12 hours to install 1,000 square feet of radiant heat, and you may need a team of professionals, including plumbers, electricians, and floor installers. Floor heating installation costs between $6 to $20 per square foot for hydronic systems, $8 to $15 per square foot for electric systems, and $11 to $17 per square foot for solar systems.

Temperature Zones

Imagine you like to keep your bedroom a bit chilly for a good night’s sleep, but your kids prefer their rooms to be a bit warmer. In that case, using radiant heating to set temperature zones can be an excellent idea.

Temperature zones allow you to customize your home with different temperatures in each room to suit everyone’s preferences. Adding a temperature control system for your radiant heating floors costs between $1,500 and $17,500, depending on the number of zones. You will also need to install a smart thermostat.

Thermostat

A thermostat is a device used to control the temperature in a home. It works by sensing the current temperature and comparing it to a desired set point. For example, if the current temperature is too low, the thermostat will signal the heating system to turn on, and if the temperature is too high, it will signal the cooling system to turn on.

You can use the thermostat along with the floor heating system to maximize efficiency and save energy. Installing a smart thermostat costs between $200 and $500.

New Boiler or Water Heater

When installing a radiant heating system, it is vital to ensure that you have a good heat source to provide enough warmth for the space. In most cases, this will require the installation of a new boiler or water heater unless you are using solar panels as your heat source.

A new boiler installation costs $3,500 to $8,500, whereas a new water heater costs $795 to $1,525.

Costs to Operate

Several factors, including the type of system and fuel source utilized, influence the cost of operating a radiant heat system. For example, systems that use electricity tend to have higher operating costs than those that use propane. Still, prices are 10% to 30% less than forced-air heating.

On average, radiant heat systems cost $1 to $6 per day to run.

Site Preparation

Installing radiant heating retrofit is more expensive than installing it in new construction, as it will require the additional work of removing the old flooring, which costs $1 to $4 per square foot, depending on the type of flooring and the difficulty of removal.

The flooring contractor may also need to install new subfloors or reinforce them to support the new system. Replacing the subfloor costs $2 to $7 per square foot.

Related Services

If you’re considering a radiant heating system, you might also want to take a look at these related services that can help you enhance the overall comfort and ambiance of your home:

Radiant Cooling

In addition to radiant heat systems, there are also radiant cooling systems that can be installed under floors or ceilings. These systems work by circulating cool water or refrigerant through tubing to dissipate heat from the room at the cost of $32 to $40 per square foot.

However, it is essential to note that radiant cooling systems may not be suitable for all regions, particularly humid ones, as the temperature of condensation changes. In addition, radiant cooling works best when installed in the ceiling, as the cool air sinks (as opposed to hot air that rises).

HVAC Installation

HVAC stands for heating, ventilation, and air conditioning. Contrary to radiant heat systems, they serve to heat or cool down your home by circulating heated or cooled air through ducts and vents instead of tubing under the floor.

While radiant heating is more energy efficient and quieter, HVAC systems are an excellent option for homes that see an equal number of warm and cool days and also need some cooling. HVAC installation costs between $5,000 and $9,000.

Insulation

Insulation is the unsung hero and an essential component of any home. It helps minimize heat transfer between the indoors and outdoors, which means it keeps the heat inside during the winter and the cool inside during the summer. This makes your home more comfortable and saves you money on your energy bills.

So, if you’re considering a radiant heating system, remember to give insulation the attention it deserves. Insulating a home costs an average of $3,020, or between $2,130 and $6,700.

Cost of Radiant Floor Heating by Location

Installing radiant floor heating can vary in cost depending on your location. In areas with extremely cold temperatures, additional insulation may be necessary to protect piping components that are close to outside walls and to prevent outdoor air from entering the system, which may add to the overall cost of the installation.

In addition, labor costs are generally higher in urban areas, which might also increase your project’s price.

FAQ

Can you Install Radiant Floor Heating DIY?

No. It is not recommended to install radiant floor heating as a DIY project, as it is a project that should be left to professionals. Attempting to do it yourself could lead to severe damage like flooding, fire, and electrical hazards, ultimately costing more to fix than hiring a professional installer.

Is Radiant Floor Heating Cost-Effective?

Yes, radiant floor heating is cost-effective. It can save 15% to 30% on energy bills compared to traditional heating methods.

What is the Best Flooring for Heated Floors?

Porcelain and ceramic tile, natural stones like flagstone and slate, and concrete are all excellent options for flooring with radiant heat systems. These materials are durable and have good heat conductivity, making them ideal for this use.

Final Thoughts

The costs for radiant heating can vary greatly, but on average, you can expect to pay between $6 and $20 per square foot. So if you want your home to feel cozy and warm during the winter months without breaking the bank, radiant heating is a great option.

To ensure optimal performance and avoid problems with your underfloor heating system, hire a flooring professional to install it for you.
